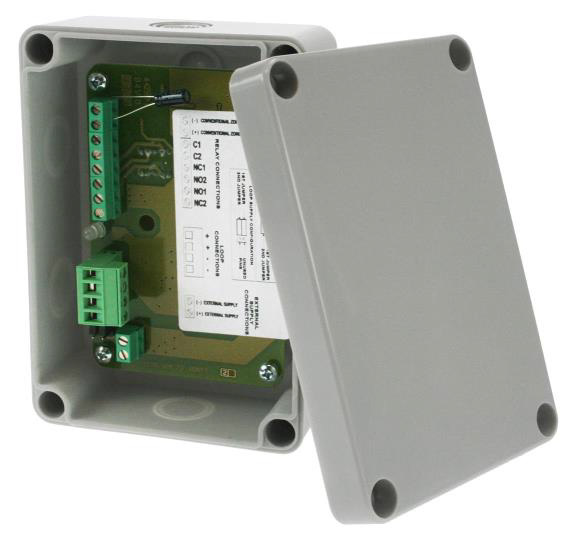

FMCZ-100 Conventional Zone Module

FMCZ-100 is a conventional zone interface module which is a Digital Distributed Intelligence device that also incorporates bi-directional short circuit isolators.

SKU: 58 Categories: ,
Loading...

Description

The conventional zone module is a microprocessor-controlled device permitting the interfacing of a conventional detection zone onto the digital Axis system loop. The Fusion AU-5000 control panel sees this device and all the conventional sub-systems as a single addressed device on the loop. Conventional zone conditions such as open, short circuit and alarm are detected by this module and notified to the Axis control panel by the module itself. The conventional zone module can be powered in different ways: either directly by the detection loop or by an external power supply source. The conventional zone module can monitor its power supply (whether from the loop or external) and measure the actual current that is flowing to the conventional zone line, giving the control panel full control over the conventional sub-system and its status. In addition, the conventional zone module is equipped with a non-supervised double pole relay output that can be used by the control panel as an output module, for example, to provide a reset feature to some conventional systems.

Key Features:

  • Provides high reliability and error detection
  • Short circuit isolators in each device
  • Large capacity, up to 240 devices per loop
  • Auto addressing capability (by the control panel) or manually using a hand hand-held programmer.
  • Adjustable current limit and reset pulse duration via the control panel
  • Digital checking of double address
  • Programmable relay output
  • Line quality information
  • AS ISO 7240.18: Fire alarm devices – Input / Output modules
  • AS ISO 7240.17: Fire alarm devices – Short Circuit Isolators
  • AS 7240.13 Compatibility
