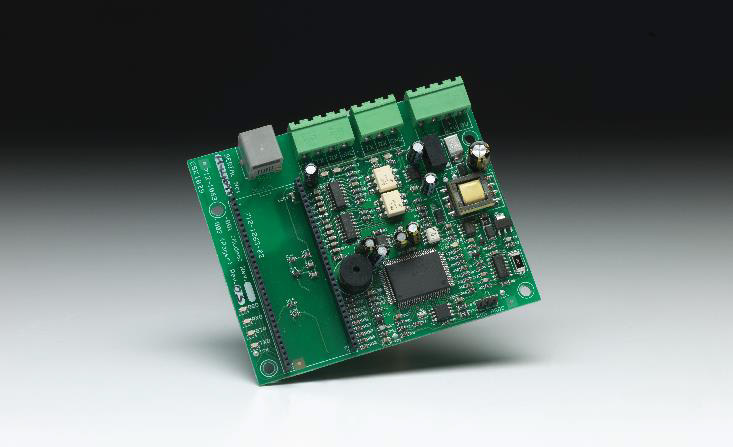

Pager Interface MXP-547

The Pager Interface is a programmable interface providing connectivity of third party paging systems to the Axis AU control equipment.

SKU: 28 Categories: , Tag:
Loading...

Description

The Pager Interface is a programmable interface providing connectivity of third party paging systems to the Axis AU control equipment. It utilises the industry standard protocol ESPA 4.4.4 and connects to the equipment via a serial data connection. An optional input function is available to monitor pager fault conditions. Specific event types (e.g. Fire, Alarm, Pre-Alarm, Fault, etc.) can be sent to individual pagers and/or to groups of pagers.

Key features:

  • Up to 8 configurable shifts per weekday/weekend
  • Up to 50 pager groups
  • Up to 250 pager addresses
  • Zone and/or point information can be sent to the pager
  • User defined texts are available and the basic event type text can be configured
  • ESPA 4.4.4 protocol
  • Panel mounted or boxed version
  • Easily configured via pager PC Software
  • 3 year warranty as standard

Applications / Limitations:
For use with pager systems compliant to ESPA 4.4.4 protocol. If a printer is also required, fit an internal printer assembly.
