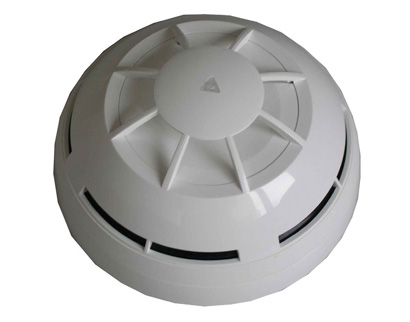

Vega Multi Criteria Detector – V-200

Axis detectors communicate on a fully digital protocol. The multi criteria detector combines a photoelectric and thermal sensing element with very sophisticated algorithms to enhance response to valid fire conditions while at the same time reducing unwanted environmental phenomena causing alarms.

A symmetrical smoke chamber ensures optimal smoke sensitivity from all directions. The double dust trap protects the smoke chamber from airborne contamination and external light. A special dust compensation algorithm reduces maintenance periods. The photo detector component of this detector contains sophisticated technological algorithms whereby both contamination and ambient light levels are compensated to suit the installed environment.

A single, centrally positioned, thermistor supervises ambient temperature with low thermal inertia. The detector efficiently analyses the status of the protected area, guaranteeing a high rejection to false and unwanted   alarms. A continuous screen provides a high level of protection  from small insects.Soft and safe addressing allows accurate configuration of system installation. The unit provides a fast and secure response enhanced by   incorporating a bidirectional short circuit isolator. A unique range of Decorline finishes are available.

Features:

  • Approved to AS7240-7 and AS7240-5 A1R SAI Global 5 Tick Quality Scheme accredited. BCA and AS1670 compliant
  • Large capacity, up to 240 devices per loop
  • Auto addressing capability (by the control panel) or manually using VPU100 handheld programmer
  • Digital protocol allows quick and accurate information High reliability and error detection
  • Short circuit isolators in each device to the requirements of EN54-17 (no Australian equivalent)
  • 9 selectable alarm thresholds including programmable mode/sensitivity change
  • 360˚ visible bicolour (red or green) LED driven by the control panel
  • Independent remote output which can be used for an additional relay output or sounder base
  • Magnet test feature
