Description

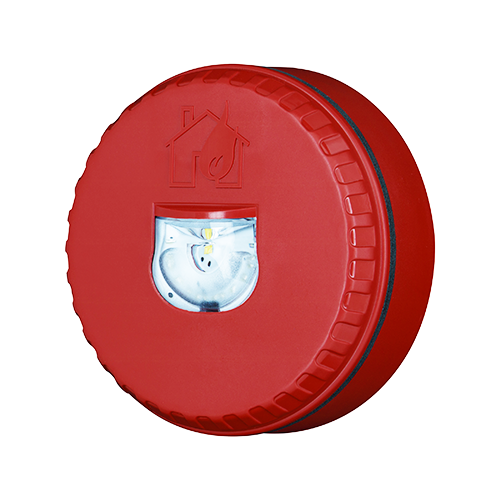

The Wall mount VAD has a unique lens design that distributes the light in a highly controlled pattern, to achieve the required illumination specified by AS 7240.23. Designed for installation at a height of up to 2.4m and with a discrete appearance, the device is ideal for a variety of applications. Certified to AS7240.23 the device meets the required illumination of 0.4lux/m2 over the entire area.
Key Features:
- Conforms with AS7240.23 (meets the required illumination 0.4 lux/m2 over entire room area)
- LED technology for long service life and low current consumption, maximising the number of devices on your alarm circuit
- Unique optics for light management, with lens design that optimises light dispersal, minimising power wastage
- Up to 7.5m coverage volume which reduces the number of devices required to cover an area
- Coverage switch feature – For smaller areas switch down from 7.5m to 5m, reducing power consumption by up to 50%
- Wide input voltage range leads to flexibility in system design
- Flash rate switch feature – Reduce from 1Hz to 0.5Hz setting, reducing power consumption by up to 50%
- Soft start-up means no current peak at start-up, thus reducing circuit loading
- New connection layout creates easier wiring and connection on installation
- Locking bases to prevent easy removal of device.
